Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle

Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle

ब्रांड नाम: Genyu
एमओक्यू: 1000
कीमत: $1.58-1.75
विस्तृत जानकारी
उत्पत्ति के प्लेस:
गुआंग्डोंग, चीन
प्रदर्शन आकार:
1.54 इंच
आकार:
204x240 रंग
संकल्प:
240x240 डॉट मैट्रिक्स
देखने का दृष्टिकोण:
आईपीएस
पिक्सेल व्यवस्था:
आरजीबी लंबवत धारियां
ड्राइव आईसी:
ST7789V
बैकलाइट:
3 पीसी सफेद एलईडी
मॉड्यूल का आकार:
31.52*33.72*1.50 मिमी
सक्रिय क्षेत्र:
27.72*27.72 मिमी
रंग प्रदर्शित करें:
65K/262K
polarizer:
पारदर्शी
परिचालन तापमान:
-20~70 डिग्री सेल्सियस
भंडारण तापमान:
-30~80 डिग्री सेल्सियस
शैली:
सीओजी + एफपीसी
इंटरफ़ेस:
एसपीआई
प्रमुखता देना:

1.54 inch TFT LCD Display

,

240x240 resolution TFT LCD Panel

,

IPS viewing angle LCD Screen

उत्पाद का वर्णन
Genyu Custom 1.54" Square TFT LCD Display
240×240 SPI TFT screen panel with IPS technology and ST7789V driver IC
Pin Configuration
Pin 1-2 3 4 5 6 7 8 9 10 11 12 13 14-16
Symbol NC GND NC GND NDDIO28 SDA SCK AO RST CS IOVCC18 LED+ LED-
Technical Specifications
Display Type:
240×240 TFT display, 1.54" TFT LCD module
Connector:
RGB
Drive IC:
ST7789V
Display Color:
65K/262K
Viewing Angle:
IPS LCD panel
Polarizer:
Transparent LCD display
Physical Specifications
Structure:
LCD + IC + FPC + BL
Module Size:
31.52 × 33.72 × 1.50 mm
Active Area:
27.72 × 27.72 mm
Operating Temperature:
-20°C to +70°C
Storage Temperature:
-30°C to +80°C
Connection:
COG + FPC
Product Images

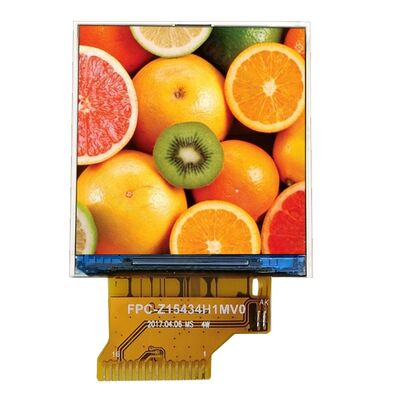

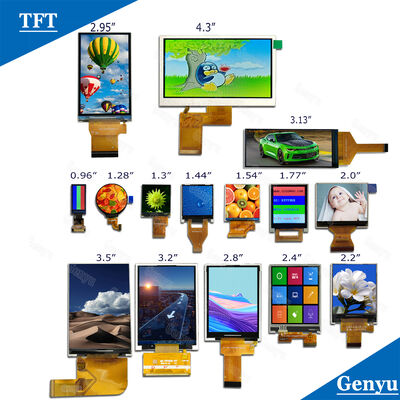

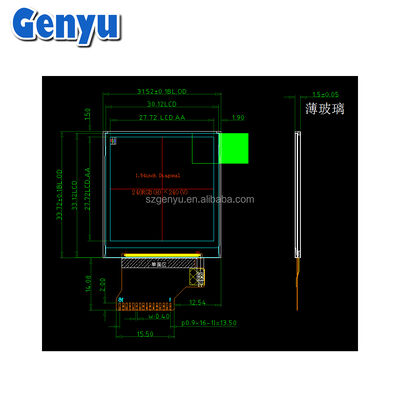

Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle 0 Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle 1 Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle 2 Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle 3 Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle 4
Packaging & Shipping
Payment Terms
Please contact us before making payment. Accepted methods: T/T, Western Union, Paypal.
Delivery Options
Items ship within 3 working days after payment confirmation:
  • DHL/UPS/FedEx/TNT: 2-5 working days
  • EMS: 7-10 working days
  • CPAM/HKPAM: 10-30 working days
Packaging
  • Anti-static bag or bubble bag (for samples)
  • Plastic pallet
  • Carton box
Genyu Custom 1.54 Inch TFT LCD Display with 240x240 Resolution and IPS Viewing Angle 5
Company Commitment
  • All products match actual specifications with detailed instructions provided
  • Comprehensive technical support available throughout development
  • Rigorous quality control with aging tests and 100% visual/electrical inspection
  • Advance notification of product upgrades with backward compatibility
  • 12-month product warranty period
Frequently Asked Questions
What is your production capacity?
Total production area: 30,000m² with over 800 personnel across LCD/LCM divisions.
How do you ensure quality control?
We maintain strict quality control from start to finish. Our factory holds ISO9001, RoHS, and CE certifications.
What is your minimum order quantity?
No strict limits for standard models. For customized models, MOQ depends on LCD size requirements.
What is your lead time?
Standard models: stock or 1-2 weeks. Customized models: 5-6 weeks.
Can I request samples?
Yes, we provide samples. Free shipping within China. Custom LCD orders typically include 5-8 free samples.
Do you offer custom LCD displays?
Yes, we provide comprehensive OEM services. With 20 years of LCD production experience, we customize LCD, LCM, backlight, and FPC solutions across TN, HTN, STN, FSTN, VA/BTN technologies.
What products do you offer?
LCD Display, AMOLED Display, OLED Display, TFT LCD, Backlight, Custom LCD, COG LCD, COB LCD Module, TFT LCD Module, Graphic LCD display, Segment LCD, and 128×64 LCD.
Do you provide technical support?
Yes, we provide technical drawings, driver IC data, initialization codes, and engineering support.
Where are your factories located?
We have factories in Shenzhen and JiangXi Province. We welcome factory visits and provide pickup service from Shenzhen Bao'an Airport or Shenzhen North Station.
